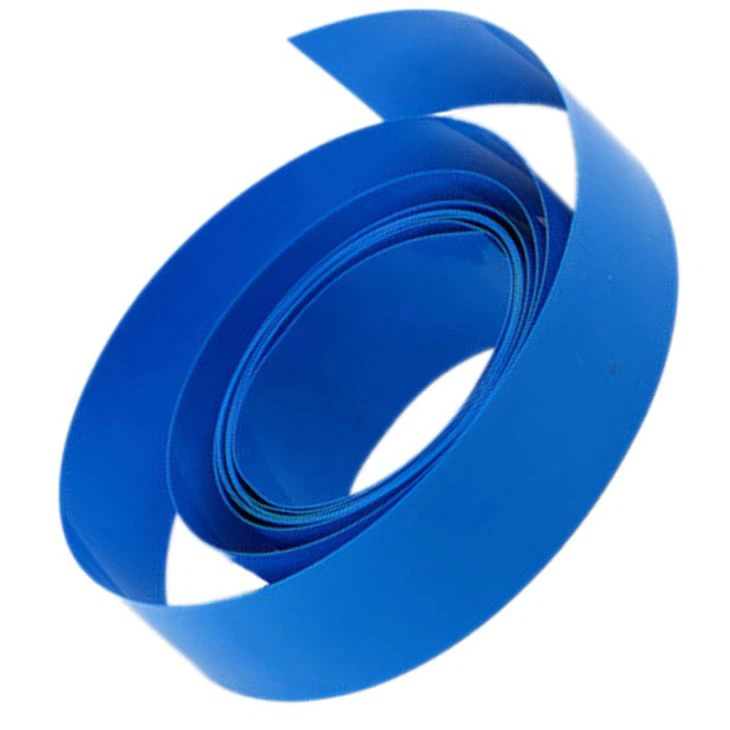

Thin Wall PVC Shrink Tube For Battery Pack

Guanghai Electronic, founded in 2009, is one of the leading thin wall pvc shrink tube for battery pack manufacturers and suppliers in China, offering you the customized service and the free sample for checking. Through special extrusion, this products made in China must be your best choice.



Thin Wall PVC Shrink Tube For Battery Pack

Technical Parameters

Product Type	Heat shrink tube
Material	PVC
Flame retardant	VW-1
Operation Temperature	-55℃-105℃
Withstand Voltage	600V
Length	Customized
Shrink ratio	3:1
Water absorption	<0.2%
Shrinking temperature	50℃
Usage	Battery,Cable

Thin,flame retardant and flexible

Acid and alkali resistant,corona resistant ,prevent mildew,high adhesion,outstanding flexibility

PVC heat shrink tubing is widely used in electronic capacitors,inductors ,all kinds of lithium battery core ,the combination of packaging,the mop bar ,tool rods ,garden tools,braces and other tubular itmes covered .And can be used for low-voltage indoor connector ,wiring harness logo , insulated skin coating .

Detailed Images

PVC Heat Shrink Tube Specification Table
Specification	Flat Width(mm)	Thickness(mm)	Packages
3	5.5±0.2	0.085±0.01	200Meter/Roll
4	7.3±0.2	0.09±0.01	200Meter/Roll
5	9.2±0.2	0.09±0.01	200Meter/Roll
6	10.6±0.2	0.09±0.01	200Meter/Roll
6.3	11.1±0.2	0.09±0.01	200Meter/Roll
8	14.1±0.2	0.095±0.01	200Meter/Roll
9	15.5±0.2	0.095±0.01	200Meter/Roll
10	17.1±0.2	0.1±0.01	200Meter/Roll
11	18.7±0.2	0.1±0.01	200Meter/Roll
12	20.7±0.2	0.1±0.015	200Meter/Roll
12.5	21.6±0.2	0.1±0.015	200Meter/Roll
13	22.1±0.2	0.1±0.015	200Meter/Roll
14.5	24.6±0.3	0.1±0.015	200Meter/Roll
16	27.1±0.3	0.11±0.015	200Meter/Roll
18	30.1±0.3	0.11±0.015	200Meter/Roll
20	33.2±0.3	0.12±0.015	200Meter/Roll
22	36.2±0.3	0.12±0.015	200Meter/Roll
25	41.4±0.4	0.14±0.02	200Meter/Roll
30	50.0±0.6	0.14±0.02	200Meter/Roll
35	57.0±0.7	0.14±0.02	200Meter/Roll
40	66.2±1	0.14±0.02	200Meter/Roll
50	83.5±1.5	0.2±0.023	200Meter/Roll
63.5	106.0±1.5	0.2±0.023	100Meter/Roll

If you need customized / special sizes, please click here to send an inquire to us. We will respond you in 24 hours.
