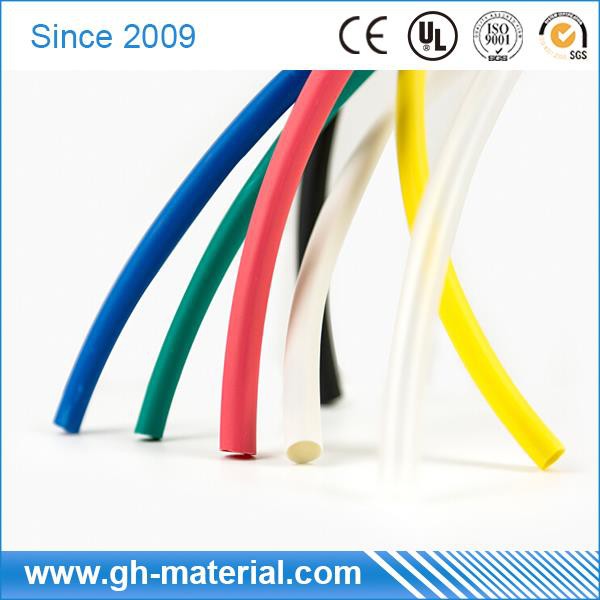

Glue Dual Wall Shrinkable Tubing For Electronic Conductor

Guanghai Electronic, founded in 2009, is one of the leading glue dual wall shrinkable tubing for electronic conductor manufacturers and suppliers in China, offering you the customized service and the free sample for checking. Through special extrusion, this products made in China must be your best choice.



Glue Dual Wall Shrinkable Tubing for Electronic Conductor:

Resistant UV and waterproof ,fit over irregular shape and large connectors;

Flame resistant,waterproof ,flexible ,multicolored for choose and customzied .

Product Type	Heat shrink tube
Material	PVC
Flame retardant	VW-1
Operation Temperature	-45℃-125℃
Withstand Voltage	600V
Length	Customized
Shrink ratio	3:1
Water absorption	<0.2%
Shrinking temperature	125℃-200℃
Usage	electronic connectors





Dual Wall Heat Shrink Tube Specification Table
Specification(Inch)	Before Shrink Diameter (mm)	After Shrink Diameter (mm)			Standard Package
	Min Diameter(D)	Max Diameter(d)	Wall Thickness(T+t)	Glue Thickness(t)	Meter/Roll	Meter/Pcs
Φ1/8	≥3.2	≤1.00	0.90±0.30	0.40±0.20	200	/
Φ3/16	≥4.8	≤1.66	1.05±0.30	0.40±0.20	100	/
Φ1/4	≥6.4	≤2.20	1.25±0.30	0.45±0.20	100	/
Φ5/16	≥7.9	≤2.70	1.35±0.30	0.45±0.20	100	/
Φ3/8	≥9.5	≤3.20	1.45±0.30	0.50±0.20	50	/
Φ1/2	≥12.7	≤4.20	1.65±0.30	0.50±0.20	/	1.22
Φ5/8	≥15.0	≤5.20	1.80±0.30	0.55±0.30	/	1.22
Φ3/4	≥19.1	≤6.30	1.95±0.30	0.60±0.30	/	1.22
Φ1	≥25.4	≤8.50	2.00±0.40	0.60±0.30	/	1.22
Φ5/4	≥30.0	≤10.20	2.15±0.40	0.65±0.30	/	1.22
Φ3/2	≥39.0	≤13.50	2.45±0.40	0.75±0.30	/	1.22
Φ2	≥50.0	≤17.00	2.75±0.40	0.80±0.30	/	1.22
Φ5/2	≥64.0	≤21.00	3.05±0.40	1.05±0.30	/	1.22
Φ3	≥76.0	≤25.00	3.05±0.50	1.05±0.40	/	1.22
Φ7/2	≥90.0	≤30.00	3.10±0.50	1.05±0.40	/	1.22
Φ4	≥100.0	≤34.00	3.10±0.50	1.10±0.40	/	1.22
Φ5	≥125.0	≤42.00	3.15±0.50	1.10±0.40	/	1.22

If you need customized / special sizes, please click here to send an inquire to us. We will respond you in 24 hours.
