Racket Handle Cozy Soft Heat Shrinkable Sleeve X Tube
Our materials range from the heat shrinkable(single wall, dual wall, medium wall and heavy duty), silicone, PVC, fiberglass, fluorine (PTFE, PVDF and FEP), ABS, PC, PP, PE, TPU, PU, TPE and TPR.
Send Inquiry
Description
Technical Parameters
Racket Handle Cozy Soft Heat Shrinkable Sleeve X Tube
Technical Parameters
| Product Type | Heat shrink tube |
| Material | PE |
| Flame retardant | VW-1 |
| Operation Temperature | -40℃-125℃ |
| Withstand Voltage | 600V |
| Shrink ratio | 2:1 |
| Water absorption | <0.2% |
| Shrinking temperature | 75-125℃ |
| Usage | Low Voltage,Sport equipment, fishing tool etc |

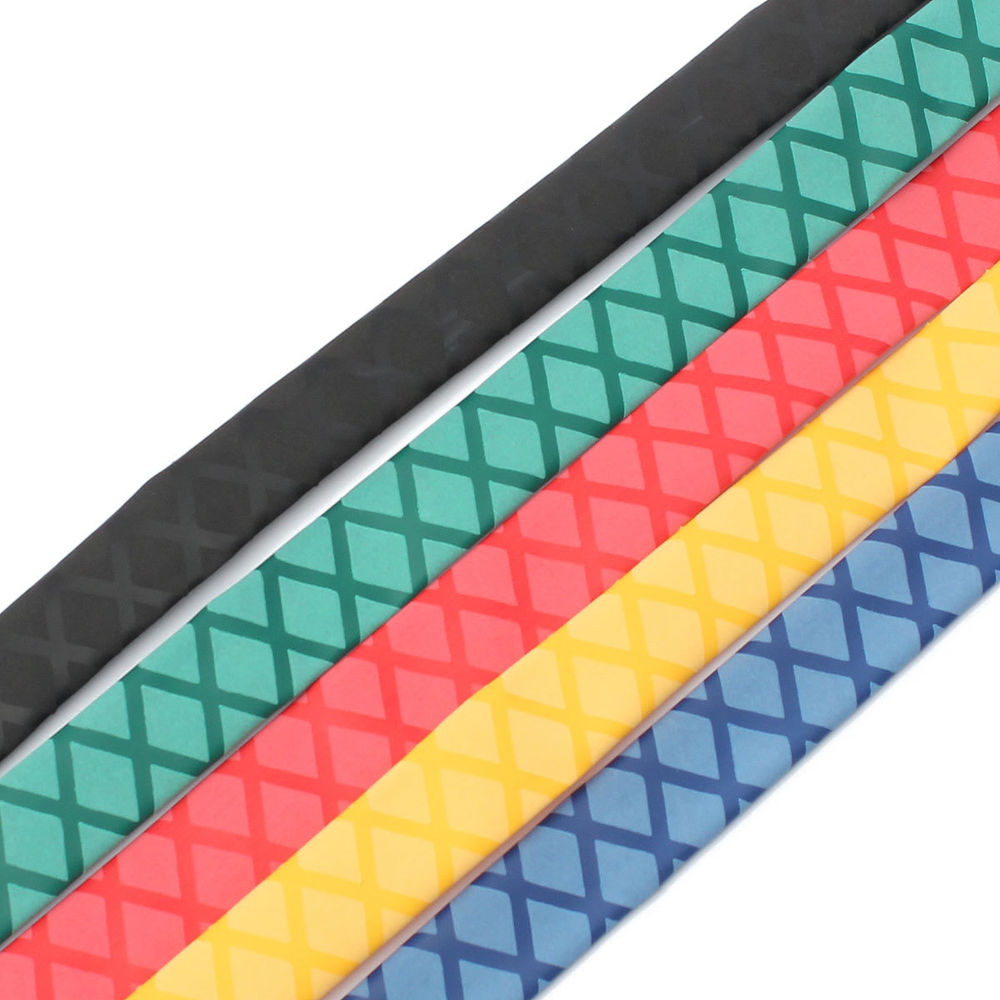

Detailed Images
| Non-Slip Heat Shrink Tube Specification Table | |||||
| Standard Specific | Inner diameter before shrink(mm) | Inner diameter after shrink(mm) | Standard Package (meter/piece) | ||
| Inner diameter | Average thickness | Maximum inner diameter | Average thickness | ||
| Φ15mm | ≥15 | 0.45±0.15 | 8 | 0.85±0.15 | 1m/pcs 1.6m/pcs |
| Φ20mm | ≥20 | 0.50±0.15 | 11 | 0.90±0.15 | 1m/pcs 1.6m/pcs |
| Φ22mm | ≥22 | 0.50±0.15 | 12.5 | 0.90±0.15 | 1m/pcs 1.6m/pcs |
| Φ25mm | ≥25 | 0.50±0.15 | 14.5 | 1.00±0.15 | 1m/pcs 1.6m/pcs |
| Φ28mm | ≥28 | 0.50±0.15 | 15.5 | 1.00±0.15 | 1m/pcs 1.6m/pcs |
| Φ30mm | ≥30 | 0.60±0.15 | 17.5 | 1.20±0.15 | 1m/pcs 1.6m/pcs |
| Φ35mm | ≥35 | 0.60±0.15 | 20 | 1.20±0.15 | 1m/pcs 1.6m/pcs |
| Φ40mm | ≥40 | 0.60±0.15 | 23 | 1.20±0.15 | 1m/pcs 1.6m/pcs |
| Φ45mm | ≥45 | 0.65±0.15 | 25 | 1.25±0.15 | 1m/pcs 1.6m/pcs |
| Φ50mm | ≥50 | 0.65±0.15 | 28 | 1.25±0.15 | 1m/pcs 1.6m/pcs |
If you need customized / special sizes, please click here to send an inquire to us. We will respond you in 24 hours.
