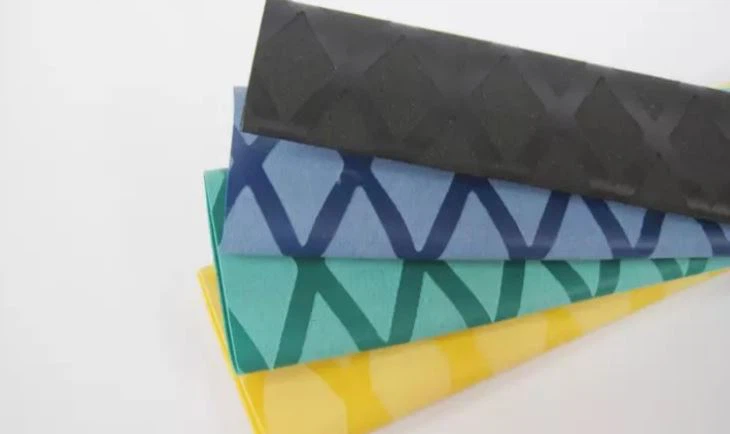

15mm 20mm 25mm 30mm 40mm Non-slip Heat Shrink Tube

15mm 20mm 25mm 30mm 40mm Non-slip Heat Shrink Tube

15mm 20mm 25mm 30mm 40mm Non-slip Heat Shrink Tube, X weave non-skip heat shrink sleeve
Send Inquiry

Description

Technical Parameters

Guanghai Electronic, founded in 2009, is one of the leading 15mm 20mm 25mm 30mm 40mm non-slip heat shrink tube manufacturers and suppliers in China, offering you the customized service and the free sample for checking. Through special extrusion, this products made in China must be your best choice.



15mm 20mm 25mm 30mm 40mm Non-slip Heat Shrink Tube


GERNAL INFORMATION

Operating Temperature: -55℃~105℃

Shrink Temperature: Started at 70℃, full recovery at 110℃

RoHS Compliant ;
Good flexibility, abrasion resistant and anti-skid performance

Standard Color: Black, Red, Yellow, White, Green, Blue

Shrink Ratio: 1.8:1



APPLICATIONS OF X WEAVE NON-SKIP HEAT SHRINK SLEEVE

Polyolefin material, excellent application for various fishing tackles, sport fittings, any equipments and commodities with hand device.


SPECIFICATIONS OF NON-SLIP HEAT SHRINK TUBES FOR FISHING RODS


Size
As Supplied (mm)
After Recovery (mm)
Standard length m/pcs
mm.(D)
Inside Diameter MIn.(D)
Wall Thickness Nominal.(T)
Inside Diameter Max.(d)
Wall Thickness Nominal.(t)
15
≥15
0.45±0.15
8
0.85±0.15
1.0
20
≥20
0.50±0.15
11
0.90±0.15
0.8/1.0/1.6
22
≥22
0.50±0.15
12.5
0.90±0.15
0.8/1.0/1.6
25
≥25
0.50±0.15
14.5
1.00±0.15
0.8/1.0/1.6
28
≥28
0.50±0.15
15.5
1.00±0.15
0.8/1.0/1.6
30
≥30
0.60±0.15
17.5
1.20±0.15
0.8/1.0/1.6
35
≥35
0.60±0.15
20
1.20±0.15
0.8/1.0/1.6
40
≥40
0.60±0.15
23
1.20±0.15
0.8/1.0/1.6
45
≥45
0.65±0.15
25
1.25±0.15
0.8/1.0/1.6
50
≥50
0.65±0.15
28
1.25±0.15
0.8/1.0/1.6

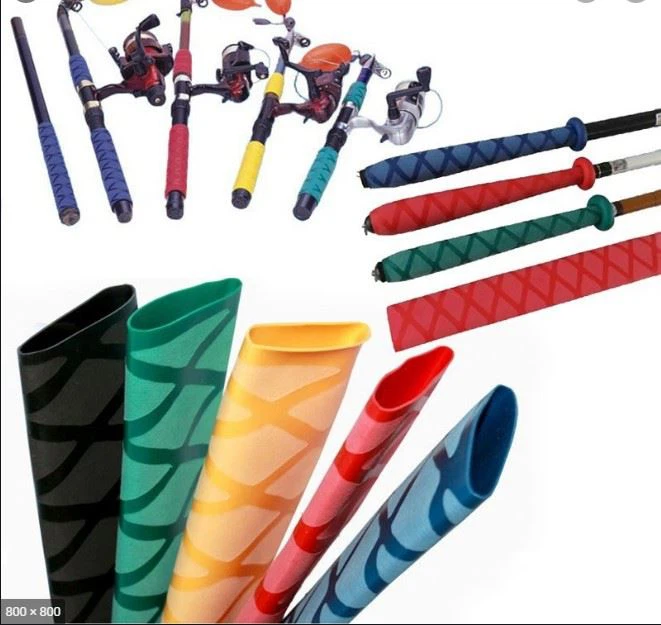

non-slip heat shrink tube 5
