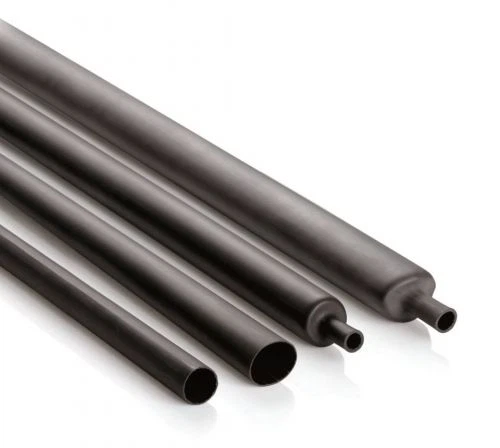

Hot-melt Glue Adhesive Lined Heat Shrink Tubing

Guanghai Electronic, founded in 2009, is one of the leading hot-melt glue adhesive lined heat shrink tubing manufacturers and suppliers in China, offering you the customized service and the free sample for checking. Through special extrusion, this products made in China must be your best choice.



Hot-melt Glue Adhesive Lined Heat Shrink Tubing

Technical Parameters

Product Type	Heat shrink tube
Material	PE+Silicone
Flame retardant	VW-1
Withstand Voltage	600V
Length	Customized
Shrink ratio	3:1
Water absorption	<0.2%
Usage	Low Voltage Cable ,fiber or wrap somthing etc
Place of Origin	Guangdong, China (Mainland)

Detailed Images

Feature:

1. Resistant to UV and waterproof ,shrink ratio 3:1


2. Easily fit over irregular shpe and large connectors


Advantages

1.Eco-friendly.

2.Tight wrap after shrinkable

Medium Wall Heat Shrink Tube Specification Table
Inner diameter before shrink(mm)	Inner diameter after shrink(mm)		Standard Length (meter/piece)
Inner diameter(MIN)	Inner diameter(MAX)	Wall thickness(MIN)
8	2	1.7	1.22
12	3	1.8	1.22
16	5	2.0	1.22
19	5	2.2	1.22
22	6	2.2	1.22
28	6	2.5	1.22
33	8	2.5	1.22
40	12	2.5	1.22
44	14	2.5	1.22
55	16	2.7	1.22
65	19	2.8	1.22
75	22	3.0	1.22
85	25	3.0	1.22
95	25	3.0	1.22
115	34	3.3	1.22
140	42	3.5	1.22
160	50	3.5	1.22
180	58	3.5	1.22
205	65	3.5	1.22
235	65	3.7	1.22
265	75	4.0	1.22
300	85	4.0	1.22
350	100	4.3	1.22
380	150	4.3	1.22
410	150	4.3	1.22

If you need customized / special sizes, please click here to send an inquire to us. We will respond you in 24 hours.
